| Part Number |
105830-A3-V1-40 |
| Product Overview

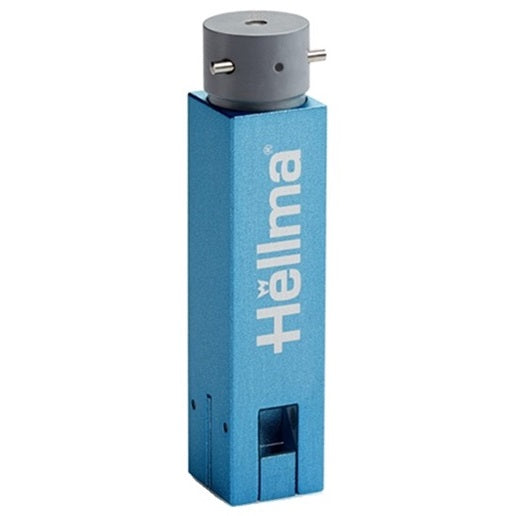

The TrayCell 2.0 is a precision fiber-optic measuring cell designed for spectrophotometric analysis of small sample volumes. The system features an integrated mirror cap that ensures consistent optical path length without the need for calibration or readjustment. |
| How It Works
Sample Application |

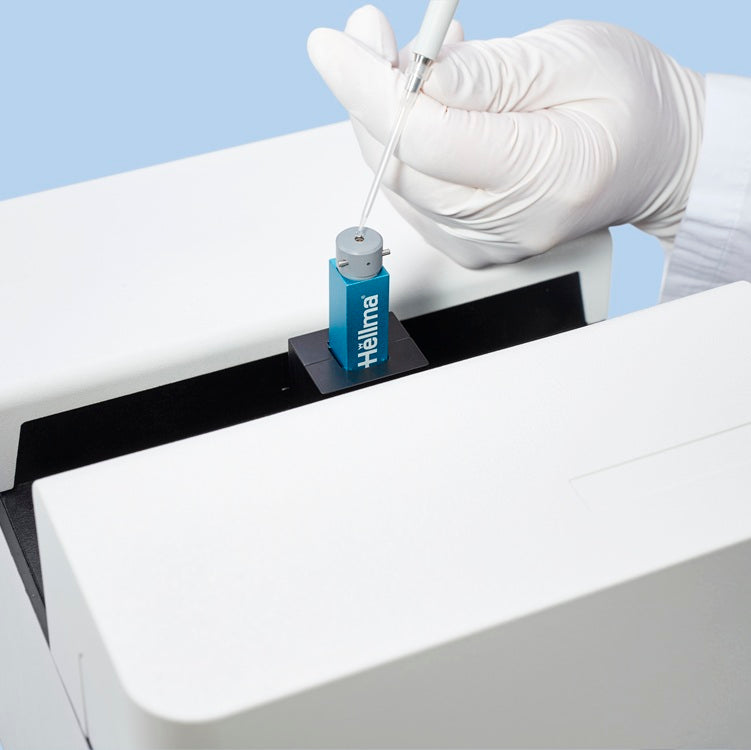

A small drop (0.7 µl – 10 µl) is pipetted onto the window |

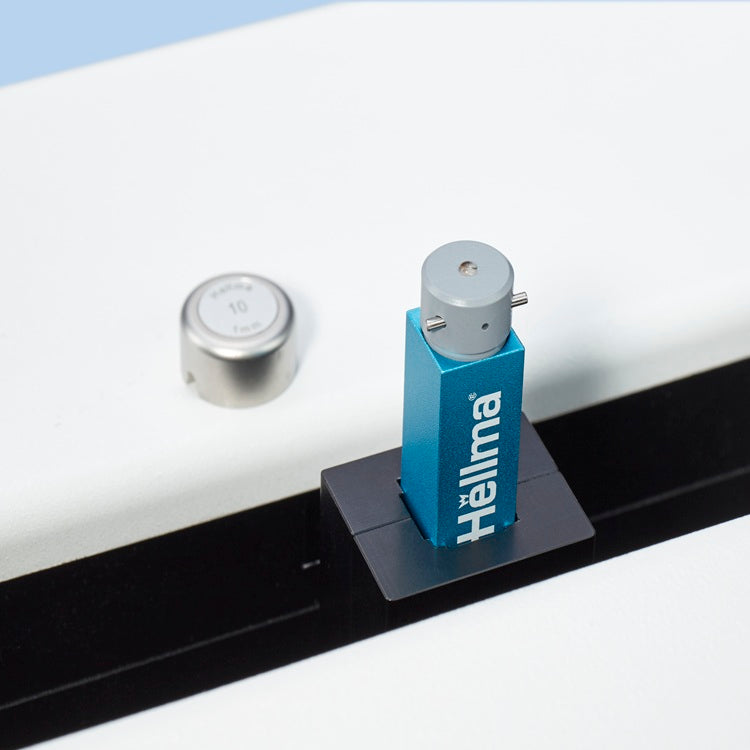

| Cap Placement |

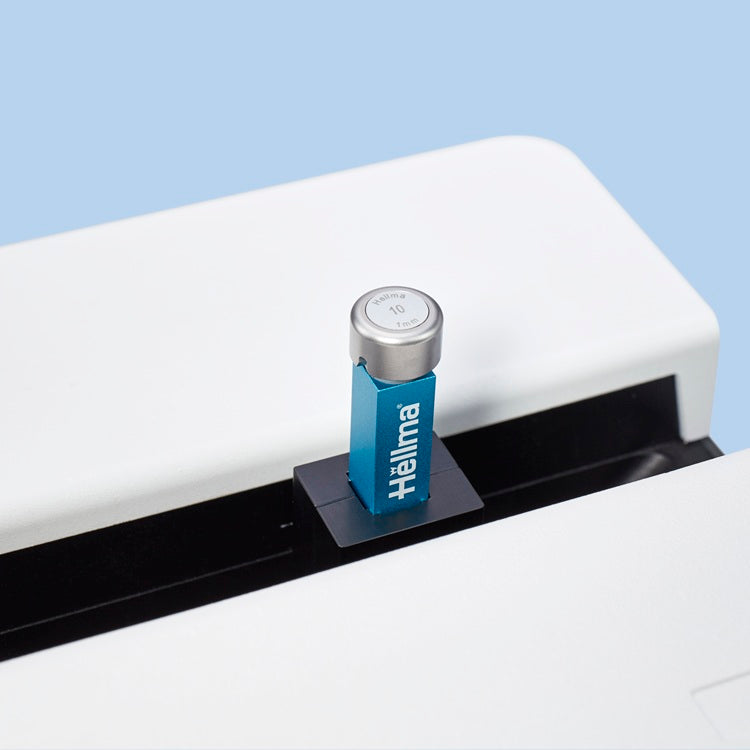

The cap with integrated mirror is placed on top |
| Light Path |
Light travels through the sample via prisms and fiber-optic waveguides |
| Reflection |
Light is reflected by the mirror back through the sample |
| Detection |
Light returns to the detector via the waveguides |
| The precisely defined spacing between the window and mirror ensures accurate, constant optical path length. |
| What's Included
Main Components
1x TrayCell 2.0 with 8.5, 15, or 20 mm center height |
| 2x Caps with different path lengths |
1.0 mm path length (factor 10)* |
| 0.2 mm path length (factor 50)* |
| Accessories
2x Center Height Adapters |
20 mm center height adapter |
| 15 mm center height adapter |
| 1x Screwdriver for center height adapter |

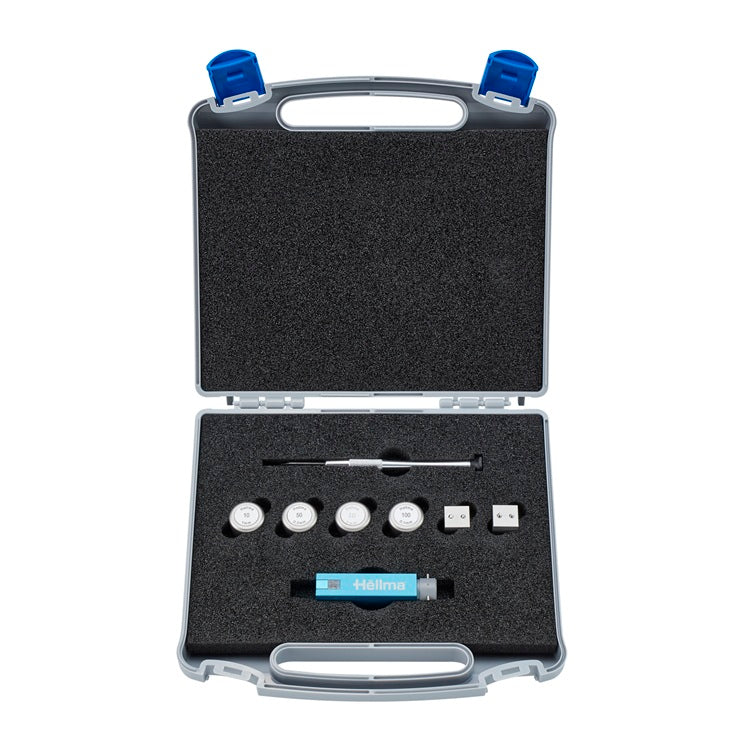

| 1x Storage Box |
| Key Features
Precision & Accuracy
Strictly defined, precise path lengths |
| Misadjustment impossible due to fixed spacing design |
| Excellent reproducibility |
| No costly calibrations or readjustments required |
| Sample Requirements
Extremely small volumes |
0.7 µl – 10 µl |
| No dilution required for most samples |
| Low surface tension samples can be measured |
| Easy sample recovery by pipetting |
| Measuring Range
dsDNA |
approximately 6 – 8,500 ng/µl* |
| Protein |
approximately 0.1 – 100 mg/ml* |
| Path Length Options
Standard |
1.0 mm and 0.2 mm |
| Optional |
2.0 mm and 0.1 mm (available separately) |
| Practical Benefits
Cap prevents sample evaporation |
| Quick and easy to clean |
| Highly flexible system |
| Compatible with all current spectrophotometers |
